Description

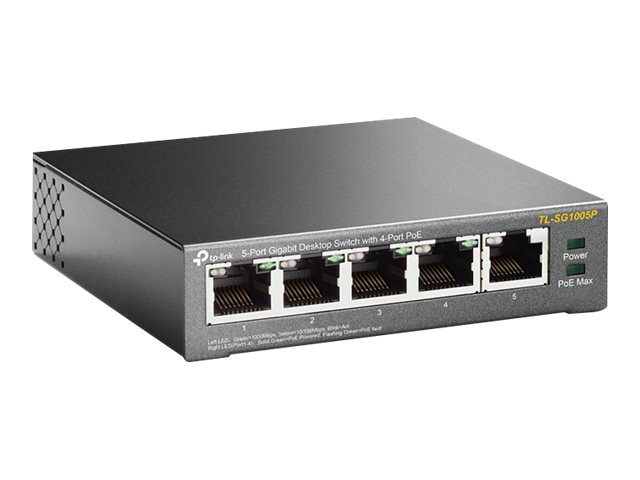

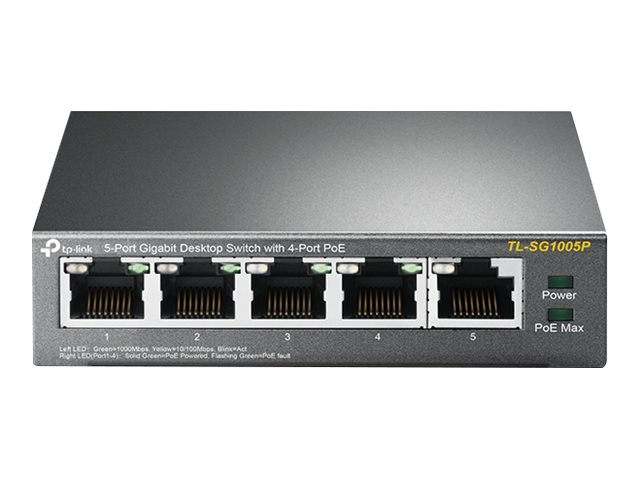

TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant powered devices. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices.
Main Specifications
|
Product Features
What’s in the box
|
   Extended Specification
General | |
---|---|
Device Type | Switch – 5 ports – unmanaged |
Enclosure Type | Desktop |
Subtype | Gigabit Ethernet |
Ports | 4 x 10/100/1000 (PoE) + 1 x 10/100/1000 |
Power Over Ethernet (PoE) | PoE |
PoE Budget | 56 W |
Performance | Switching capacity:10 Gbps |
MAC Address Table Size | 2K entries |
Features | Flow control, full duplex capability, PoE, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, fanless |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x |
Status Indicators | Power, link/activity |
Expansion / Connectivity | |
---|---|
Interfaces | 1 x 1000Base-T RJ-45 4 x 1000Base-T RJ-45 PoE |
Power | |
---|---|
Power Device | External power adapter |
Miscellaneous | |
---|---|
Compliant Standards | FCC, RoHS |
Dimensions & Weight | |
---|---|
Width | 9.98 cm |
Depth | 9.8 cm |
Height | 2.5 cm |
Manufacturer Warranty | |
---|---|
Service & Support | Limited warranty – parts and labour – 2 years |
Environmental Parameters | |
---|---|
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 – 90% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 – 90% (non-condensing) |
