Description
The latest SonicWall TZ series, are the first desktop form factor next generation firewalls (NGFW) with 10 or 5 Gigabit Ethernet interfaces. The series consist of a wide range of products to suit a variety of use cases. Designed for small, mid-sized organizations and distributed enterprise with SD-Branch locations, the 7th generation (Gen 7) TZ series delivers industry-validated security effectiveness with best-in-class price performance. These NGFWs address the growing trends in web encryption, connected devices and high-speed mobility by delivering a solution that meets the need for automated, real-time breach detection and prevention. The Gen 7 TZ series are highly scalable, with high port density of up to 10 ports. It features both inbuilt and an expandable storage of up to 256GB, that enables various features including logging, reporting, caching, firmware backup and more. An optional second power supply provides added redundancy in case of failure on select models.

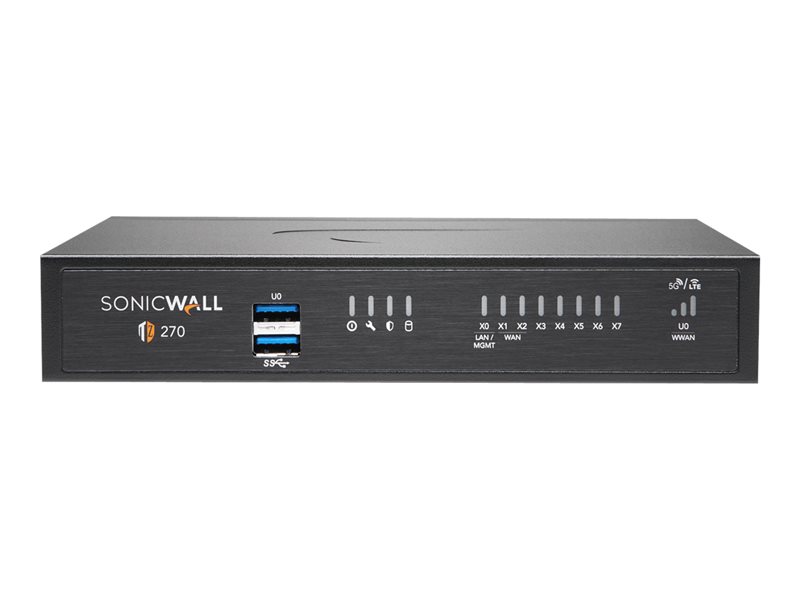

Designed for home offices and lean branches, the TZ270 series deliver industry-validated security effectiveness with best-inclass price-performance.
Main Specifications
|
What’s in the box
|
Extended Specification
General | |
---|---|
Device Type | Security appliance |
Width | 19 cm |
Depth | 13.5 cm |
Height | 3.5 cm |
Weight | 820 g |
Networking | |
---|---|
Form Factor | Desktop |
Connectivity Technology | Wired |
Data Link Protocol | Gigabit Ethernet |
Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
Remote Management Protocol | SNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLI |
Performance | Firewall throughput:2 Gbps Threat prevention throughput:750 Mbps Application throughput:1 Gbps IPS throughput:1 Gbps Anti-malware throughput:750 Mbps TLS/SSL inspection and decryption throughput:300 Mbps VPN throughput (IPSec):750 Mbps Connection rate:6000 connections per second |
Capacity | Virtual interfaces (VLANs):64 SSL VPN licences:1 (maximum 50) VPN tunnels (site-to-site):50 IPSec VPN clients:5 (maximum 200) SPI connections:750000 DPI connections:150000 DPI SSL connections:25000 Single Sign-On (SSO) users:1000 Manageable access points:16 |
Status Indicators | Power, test mode, link/activity, SSD activity, secure |
Features | Firewall protection, NAT support, VPN support, PAT support, VLAN support, Stateful Packet Inspection (SPI), DoS attack prevention, content filtering, port mirroring, IPv6 support, antivirus analysis, Deep Packet Inspection (DPI), DDos attack prevention, anti-spam protection, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), Jumbo Frames support, DHCP server, bandwidth control, IPv4 support, Common Access Card (CAC) reader support, DHCP relay, 3G/4G USB Dongle Support, NetFlow, Single Sign-On (SSO) support, VLAN trunking, SD-WAN support |
Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
Authentication Method | RADIUS, LDAP, XAUTH authentication |
IP Telephony | |
---|---|
VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
Expansion / Connectivity | |
---|---|
Interfaces | 6 x 1000Base-T – RJ-45 2 x 1000Base-T – RJ-45 (WAN) 2 x USB 3.0 – Type A 1 x console – RJ-45 |
