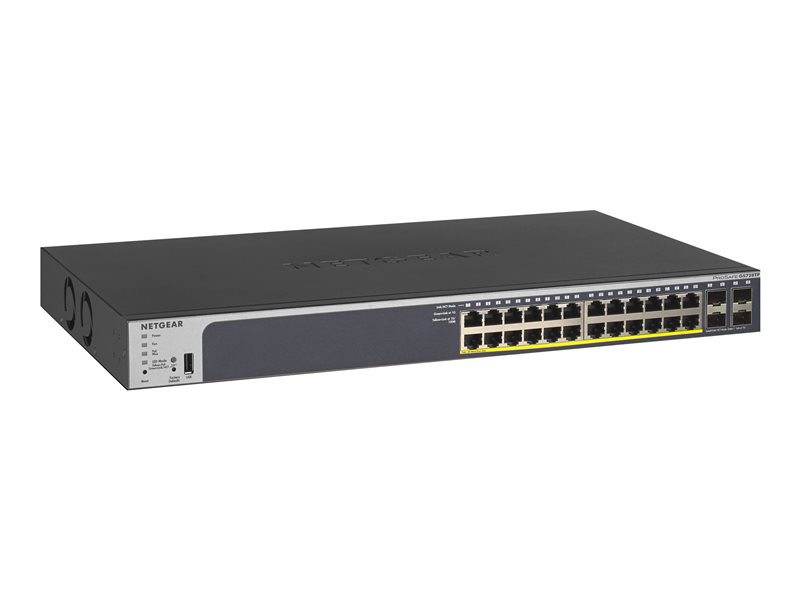

NETGEAR Smart GS728TP

Description

GS728TP is Gigabit PoE/ PoE+ Smart Switche that comes with PoE capabilities on all ports and supports PoE+ with up to 30W of power budget on the first 8 ports, providing hardware investment protections so that the switch can support many more PoE powered devices and higher-powered devices down the road. There has also been an addition of high-powered PoE+ Smart Switch into the portfolio. It also comes with 4 dedicated Gigabit SFP ports for fiber connectivity.

Main Specifications

Product Description	NETGEAR Smart GS728TP – v2 – switch – 24 ports – smart – rack-mountable
Device Type	Switch – 24 ports – L3 – smart
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	190 W
Performance	Switch fabric speed:56 Gbps ¦ Forwarding performance (64-byte packet size):41.67 Mpps
Capacity	ACL:100 ¦ ARP entries:512 ¦ VLANs supported:256 ¦ IPv4 routes (static):32 ¦ IPv6 routes (static):32 ¦ IGMP multicast groups:512
MAC Address Table Size	16K entries
Jumbo Frame Support	10KB
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
Features	DHCP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP snooping, QoS, MLD snooping, DAI, DHCP relay, LACP, DHCP client, MVR, GARP, GVRP, ToS, DSCP support, 2 fans, 1.5MB packet buffer, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, Voice VLAN, Private VLAN, Guest VLAN, DoS protection, WRR, Auto VoIP, MAC lockdown
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Power	AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)	44 cm x 25.7 cm x 4.32 cm
Weight	3.78 kg
Localisation	Europe
Manufacturer Warranty	Limited lifetime warranty

Product Features

Designed for converged network, big or small
Gigabit Speed with all ports capable of support either PoE or PoE+. Auto Voice VLAN for fast and reliable deployment of VoIP. Auto Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance system. Static routing, helps to route internal traffic for more efficient use of network resources. IGMP and MLD snooping, providing advanced multicast filtering.
Build a future-proof network with NETGEAR
Solid performance with non-blocking architecture, 8K MAC addresses, 256 VLANs, 480 shared ACL entries, 32static routes, and 1,024 Multicast Groups. Comprehensive IPv6 supporting management, QoS and ACL, ensuring investment protection and a smooth migration to IPv6-based network. PoE+ support on all models with GS728TPP support PoE+ on all ports, providing flexibility in the future to add power-hungry devices such as video phone, PTZ camera and 11ac Wireless APs into the network. 4 dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for network virtualization. Energy Efficient Ethernet (IEEE802.3az) support for more energy saving in the future when more EEE-compliant end devices come to market. Advanced QoS with IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS – DiffServ). Dynamic VLAN assignment for easy user authentication and location-independent access to network.
Network development made easy
Auto Voice VLAN for easy development of VoIP. Auto Video for simple deployment of IP Surveillaince. ACL Wizard for a guided tour to set up your network access control. Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrade. PoE Timer for scheduling on/off time of your PoE powered devices. With PD and PoE capability on the same device, GS516TP make network switch deployment truly free from AC power outlet. It provides maximum flexibility for network build-up, modifications and re-layout.

Extended Specification

General
Device Type	Switch – 24 ports – L3 – smart
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	190 W
Performance	Switch fabric speed:56 Gbps Forwarding performance (64-byte packet size):41.67 Mpps
Capacity	ACL:100 ARP entries:512 VLANs supported:256 IPv4 routes (static):32 IPv6 routes (static):32 IGMP multicast groups:512
MAC Address Table Size	16K entries
Jumbo Frame Support	10KB
Routing Protocol	Static IP routing
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
Encryption Algorithm	TLS
Authentication Method	RADIUS, TACACS+
Features	DHCP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP snooping, QoS, MLD snooping, DAI, DHCP relay, LACP, DHCP client, MVR, GARP, GVRP, ToS, DSCP support, 2 fans, 1.5MB packet buffer, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, Voice VLAN, Private VLAN, Guest VLAN, DoS protection, WRR, Auto VoIP, MAC lockdown
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor	1:700 MHz
RAM	128 MB
Flash Memory	32 MB
Status Indicators	Port transmission speed, PoE, link/activity

Expansion / Connectivity
Interfaces	24 x 10/100/1000 Base-T RJ-45 PoE+ 4 x 1000Base-X SFP 1 x USB

Power
Power Device	Internal power supply
Installed Qty	1
Voltage Required	AC 120/230 V (50/60 Hz)

Miscellaneous
Rack Mounting Kit	Included
MTBF	1,250,365 hours
Compliant Standards	EN 60950, EN55024, CSA 22.2 No. 950, CB, CCC, FCC Part 15 A, C-Tick Class A, VCCI Class A, FCC CFR47 Part 15 B Class A, IEC 950, ANSI C63.4-2014, EN 55022/CISPR 22 Class A, ICES-003:2016 issue 6 Class A, AS/NZS CISPR22:2009+A1:2010 Class A, AN/NZS 60950.1:2015, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Localisation	Europe

Dimensions & Weight
Width	44 cm
Depth	25.7 cm
Height	4.32 cm
Weight	3.78 kg

Manufacturer Warranty
Service & Support	Limited warranty – replacement – lifetime – response time:next business day Technical support – phone consulting – 90 days

Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	50 °C
Humidity Range Operating	90% (non-condensing)
Min Storage Temperature	-20 °C
Max Storage Temperature	70 °C
Humidity Range Storage	95% (non-condensing)

Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained on this site.
