Description
Main Specifications
|
|
Extended Specification
General | |
---|---|
Type | Personal computer |
Bundled Services | 1 Year Lenovo Onsite Support |
Product Form Factor | Small form factor |
Built-in Devices | Speaker |
Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
Colour | Raven black |
Localisation | Language:English / region:United Kingdom |
Processor / Chipset | |
---|---|
CPU | Intel Core i3 (13th Gen) 13100 |
Clock Speed | 3.4 GHz |
Max Turbo Speed | 4.5 GHz |
Number of Cores | Quad-Core |
CPU Qty | 1 |
Max CPU Qty | 1 |
Chipset Type | Intel B660 |
Cache Memory | |
---|---|
Installed Size | 12 MB |
Cache Per Processor | 12 MB |
RAM | |
---|---|
Installed Size | 8 GB / 64 GB (max) |
Technology | DDR4 SDRAM |
Effective Memory Speed | 3200 MHz |
Rated Memory Speed | 3200 MHz |
Form Factor | DIMM 288-pin |
Slots | 2 (Total) / 1 (empty) |
Features | Unbuffered, dual channel memory architecture |
Configuration Features | 1 x 8 GB |
Hard Drive | |
---|---|
Type | SSD – M.2 2280 |
Capacity | 1 x 256 GB |
Interface Type | PCI Express 4.0 x4 |
Features | TCG Opal Encryption 2, NVM Express (NVMe) |
Storage Controller | |
---|---|
Type | 1 x SATA |
Controller Interface Type | SATA 6Gb/s |
Optical Storage | |
---|---|
Type | No optical drive |
Card Reader | |
---|---|
Type | 7 in 1 card reader |
Supported Flash Memory Cards | Memory Stick, Memory Stick PRO, MultiMediaCard, SD Memory Card, xD-Picture Card, SDHC Memory Card, SDXC Memory Card |
Monitor | |
---|---|
Monitor Type | None. |
Graphics Controller | |
---|---|
Graphics Processor | Intel UHD Graphics 730 Shared Video Memory (UMA) |
Video Interfaces | VGA, HDMI, DisplayPort |
Max Monitors Supported | 3 |
Audio Output | |
---|---|
Compliant Standards | High Definition Audio |
Input Device | |
---|---|
Type | Mouse, keyboard |
Keyboard | |
---|---|
Keyboard Name | Lenovo Calliope Keyboard |
Interface | USB |
Localization & Layout | UK |
Mouse | |
---|---|
Mouse Name | Lenovo Calliope Mouse |
Interface | USB |
Networking | |
---|---|
Ethernet Controller | Realtek RTL8111HN |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Features | Wake on LAN (WoL) |
Expansion / Connectivity | |
---|---|
Bays | 1 (total) / 1 (free) x external 5.25″ Slim Line 1 (total) / 1 (free) x internal 2.5″ / 3.5″ shared |
Slots | 1 (total) / 1 (free) x PCIe 4.0 x16 – low-profile 1 (total) / 1 (free) x PCIe 3.0 x1 – low-profile 1 (total) / 1 (free) x M.2 Card (for WLAN) 1 (total) / 0 (free) x M.2 Card (for SSD) |
Interfaces | 2 x USB 3.2 Gen 1 (2 in front) 1 x USB-C 3.2 Gen 1 (1 in front) (data transfer, 5V 3A charging) 1 x headphones/microphone (1 in front) 1 x microphone (1 in front) 2 x USB 2.0 2 x USB 3.2 Gen 1 (one of them supports SmartPower On) 1 x VGA 1 x HDMI 1 x DisplayPort 1.4 1 x LAN (Gigabit Ethernet) 1 x audio line-out |
Miscellaneous | |
---|---|
Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch |
Security Slot Type | Kensington security slot |
Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 3, TCG Certified |
Manufacturer Selling Program | TopSeller |
Power | |
---|---|
Device Type | Power supply |
Voltage Required | AC 100-240 V (50/60 Hz) |
Power Provided | 180 Watt |
Efficiency | 85% |
Operating System / Software | |
---|---|
OS Provided | Windows 11 Pro English |
Manufacturer Warranty | |
---|---|
Service & Support | Base warranty – 1 year – pick-up and return Extended warranty – 1 year – on-site |
Dimensions & Weight | |
---|---|
Width | 10 cm |
Depth | 30.8 cm |
Height | 27.48 cm |
Weight | 4.5 kg |
Dimensions & Weight (Shipping) | |
---|---|
Shipping Width | 19.5 cm |
Shipping Depth | 39 cm |
Shipping Height | 50 cm |
Shipping Weight | 6.35 kg |
Environmental Parameters | |
---|---|
Min Operating Temperature | 5 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 20 – 80% |
Small & powerful

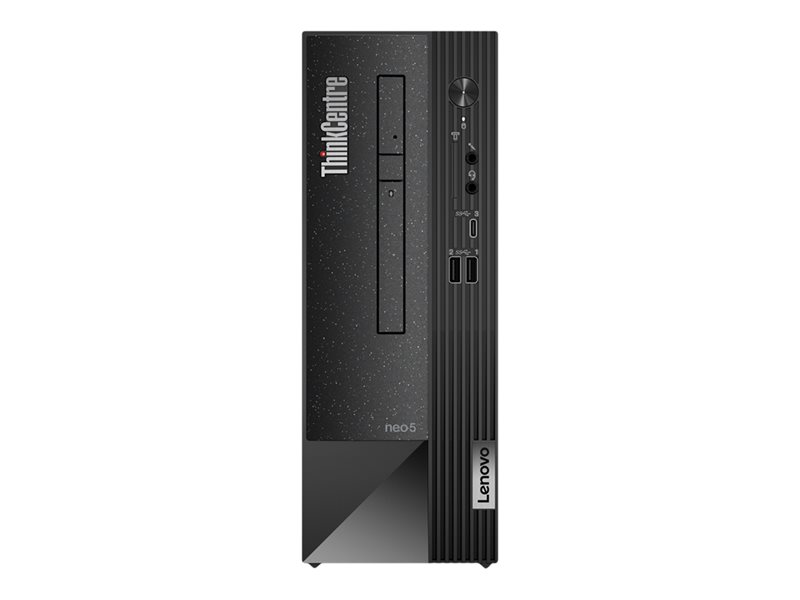

The ThinkCentre Neo 50s Gen 4 Small Form Factor (SFF) packs a lot of power in a space-saving business PC. With up to 13th Gen Intel® Core™ processors, speedy DDR4 memory, and loads of HDD and/or SSD storage, this small form factor (SFF) desktop will zip through any task for improved productivity. And for optimal visuals, there’s a choice of integrated.
Certified ‘Earth-friendly’
Buy a new PC and give the Earth a break. The compact, durable ThinkCentre Neo 50s Gen 4 SFF is paint-free, with a chassis built from 35% post-consumer content and packaging that’s 90% expanded polyethylene (EPE), which is easier to recycle than many other packing materials.
Connectivity for any business need
A breeze to set up anywhere, the ThinkCentre Neo 50s Gen 4 Small Form Factor (SFF) is designed to bring you and your colleagues together, wherever you’re working from. There are multiple front-and-back USB ports for peripherals and a range of video connection options—from VGA to DisplayPort to HDMI. Everything’s smooth and fast, whether its’s connecting to other devices or collaborating online.
Cool & efficient—anywhere you work
With our Intelligent Cooling Engine (ICE) 5.0, system performance is optimized based on your workload. This enables superb energy efficiency, with over 40kwh per unit, per year in power savings. Additionally, the ThinkCentre Neo 50s Gen 4 SFF business PC has three operating modes for different workplaces, whether it’s an air-conditioned office, a hot restaurant kitchen, or a busy factory floor.
Upgradable. Expandable. Ready for anything.
Easy to upgrade and expand, the ThinkCentre Neo 50s Gen 4 desktop can be customized to meet your computing needs today and tomorrow. It’s compact but still has space, including PCIe slots, for you to easily add extra graphics or storage. Or, with an optional Smart Cable, you can simply connect to another PC and leverage the additional storage capacity as you work seamlessly between two devices.
