Description
Main Specifications
|
Extended Specification
General | |
---|---|
Platform Technology | Intel vPro Enterprise |
Type | Personal computer |
Bundled Services | 1 Year Lenovo Premier Support |
Product Form Factor | Tiny |
Built-in Devices | Speaker |
Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
Colour | Black |
Localisation | Language:English / region:United Kingdom |
Processor / Chipset | |
---|---|
CPU | Intel Core i5 (12th Gen) 12500T |
Clock Speed | 2 GHz |
Max Turbo Speed | 4.4 GHz |
Number of Cores | 6-core |
CPU Qty | 1 |
Max CPU Qty | 1 |
Chipset Type | Intel Q670 |
Cache Memory | |
---|---|
Installed Size | 18 MB |
Cache Per Processor | 18 MB |
RAM | |
---|---|
Installed Size | 8 GB / 64 GB (max) |
Technology | DDR5 SDRAM |
Effective Memory Speed | 4800 MHz |
Rated Memory Speed | 4800 MHz |
Form Factor | SO-DIMM 262-pin |
Slots | 2 (Total) / 1 (empty) |
Features | Dual channel memory architecture |
Configuration Features | 1 x 8 GB |
Hard Drive | |
---|---|
Type | SSD – M.2 2280 |
Capacity | 1 x 256 GB |
Interface Type | PCI Express 4.0 x4 |
Features | TCG Opal Encryption, NVM Express (NVMe), Value |
Storage Controller | |
---|---|
Type | 1 x SATA |
Optical Storage | |
---|---|
Type | No optical drive |
Monitor | |
---|---|
Monitor Type | None. |
Graphics Controller | |
---|---|
Graphics Processor | Intel UHD Graphics 770 Shared Video Memory (UMA) |
Video Interfaces | HDMI, DisplayPort |
Max Monitors Supported | 3 |
Audio Output | |
---|---|
Compliant Standards | High Definition Audio |
Input Device | |
---|---|
Type | Mouse, keyboard |
Keyboard | |
---|---|
Keyboard Name | Lenovo Traditional Keyboard |
Interface | USB |
Localization & Layout | UK |
Mouse | |
---|---|
Mouse Name | Lenovo Calliope Mouse |
Interface | USB |
Networking | |
---|---|
Interface (Bus) Type | M.2 Card |
Ethernet Controller | Intel I219-LM |
Wireless LAN Supported | Yes |
Wireless NIC | Intel Wi-Fi 6E AX 211 |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) |
Features | Wake on LAN (WoL), dual stream (2×2) |
Expansion / Connectivity | |
---|---|
Bays | 1 (total) / 1 (free) x internal 2.5″ |
Slots | 1 (total) / 1 (free) x PCIe 4.0 x8 (low-profile) 2 (total) / 1 (free) x M.2 Card (for SSD) 1 (total) / 0 (free) x M.2 Card (for WLAN) |
Interfaces | 3 x USB 3.2 Gen 2 (1 front, 2 rear) 1 x USB 3.2 Gen 2 (1 in front) (Always On, fast-charging (5V, 2.1A)) 1 x USB-C 3.2 Gen 2 (1 in front) 1 x headphones/microphone (1 in front) 2 x USB 3.2 Gen 1 (one of them supports SmartPower On) 1 x HDMI 1 x DisplayPort 1.4 1 x DisplayPort 1.2 1 x serial |
Miscellaneous | |
---|---|
Included Accessories | VESA mounting kit |
Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion switch, tool-less chassis access |
Security Slot Type | Kensington security slot |
VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
Compliant Standards | RoHS, Energy-Related Products (ErP) Lot 3, TCG Certified, TUV Rheinland Ultra Low Noise Certification |
Manufacturer Selling Program | TopSeller |
Power | |
---|---|
Device Type | Power adapter |
Voltage Required | AC 100-240 V (50/60 Hz) |
Power Provided | 90 Watt |
Efficiency | 89% |
Operating System / Software | |
---|---|
OS Provided | Windows 11 Pro English |
Sustainability Information | |
---|---|
TCO Certified | TCO Certified Desktops 9 |
EPEAT Compliant | EPEAT Gold |
ENERGY STAR Certified | Yes |
ENERGY STAR Version | 8.0 |
Manufacturer Warranty | |
---|---|
Service & Support | Base warranty – 3 years – on-site Extended warranty – 1 year – on-site – response time:next business day |
Dimensions & Weight | |
---|---|
Width | 17.9 cm |
Depth | 18.29 cm |
Height | 3.65 cm |
Weight | 1.25 kg |
Dimensions & Weight (Shipping) | |
---|---|
Shipping Width | 49 cm |
Shipping Depth | 26.8 cm |
Shipping Height | 14.1 cm |
Shipping Weight | 2.848 kg |
Environmental Parameters | |
---|---|
Min Operating Temperature | 5 °C |
Max Operating Temperature | 35 °C |
Humidity Range Operating | 20 – 80% |

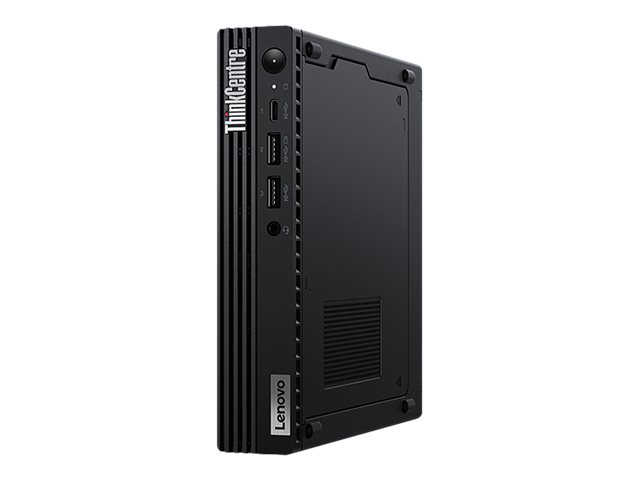

ThinkCentre M90q Gen 3 Tiny (Intel)
- Designed for customization: Easy to deploy, upgrade, and manage
- Ultimate tiny desktop for premium productivity and flexibility
- ThinkShield security with TPM 2.0 chip protection
- EC Self-healing (level 2) and BIOS-based Smart USB Protection
- Modern standby, always updated and an ultrafast boot
- Designed for customization, easy to deploy, upgrade and manage
- Small enough to fit—or hide—almost anywhere
Made for manageability
The ThinkCentre M90q Gen 3 tiny desktop is easy to deploy, upgrade, and manage thanks to features like built-in driver support for older OS versions, a PCIe add-on slot, and an X4 Ethernet add-on card. Toolless access to the SSD and memory module make expansion and maintenance fast and efficient.
Smarter features. Smoother workdays.
It’s the small things that help you get the most out of the workday. M90q Gen 3 is loaded with practical features like Smart Power On, which allows you to turn on the desktop with a simple keyboard shortcut. Additionally, multiple mounting options allow this tiny desktop to fit—or hide—almost anywhere.
Complete security
ThinkShield is the most comprehensive, end-to-end security solution on the market; combining industry leading hardware, software, services, and processes to protect your data. Built on the Intel vPro® Enterprise platform, it features hardware-based, below-the-OS advanced threat detection.
1 Year Premier Support Included
Lenovo Premier Support is the premium PC support solution for your Think devices. With around-the-clock access to Lenovo engineers, you’ll have the expert hardware and software support needed to get the very most out of your PC.
